A

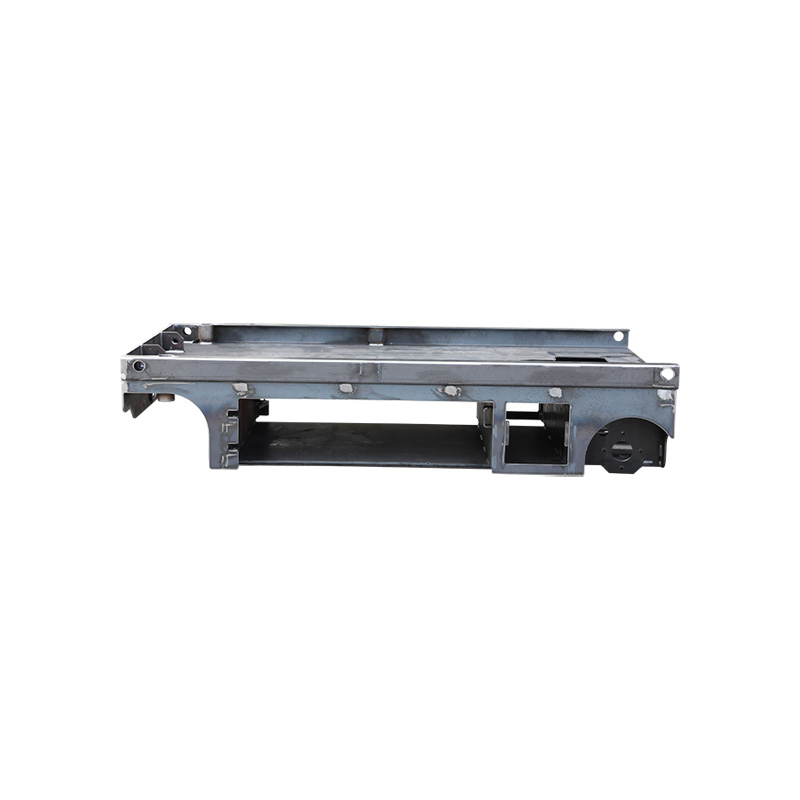

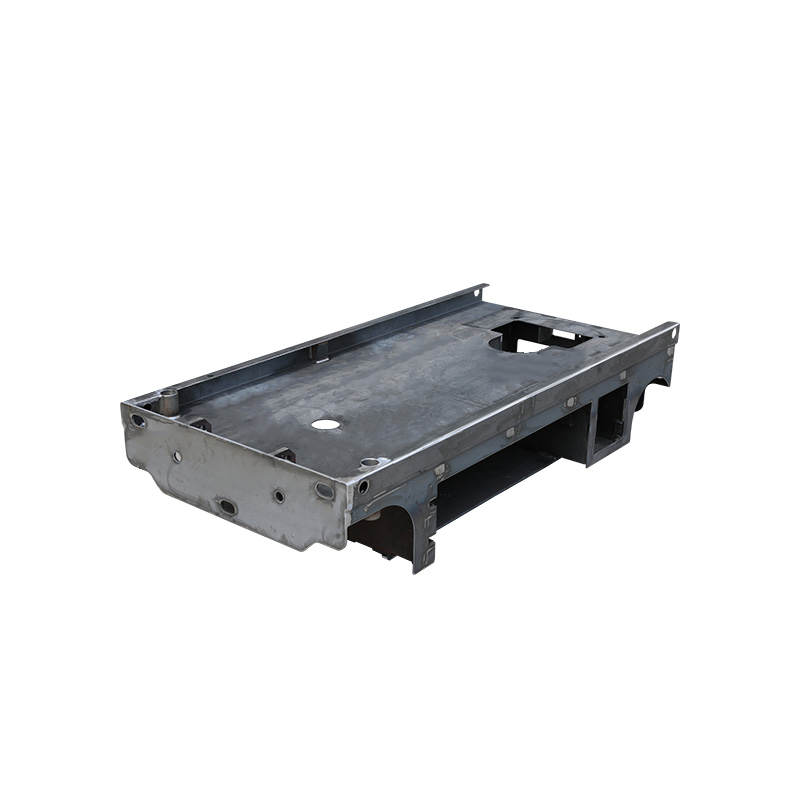

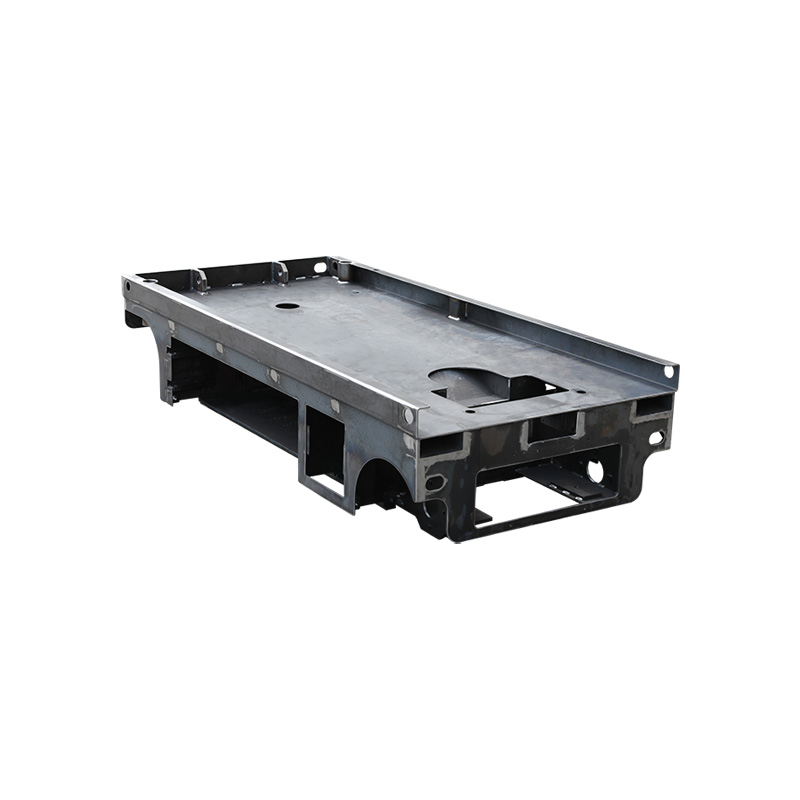

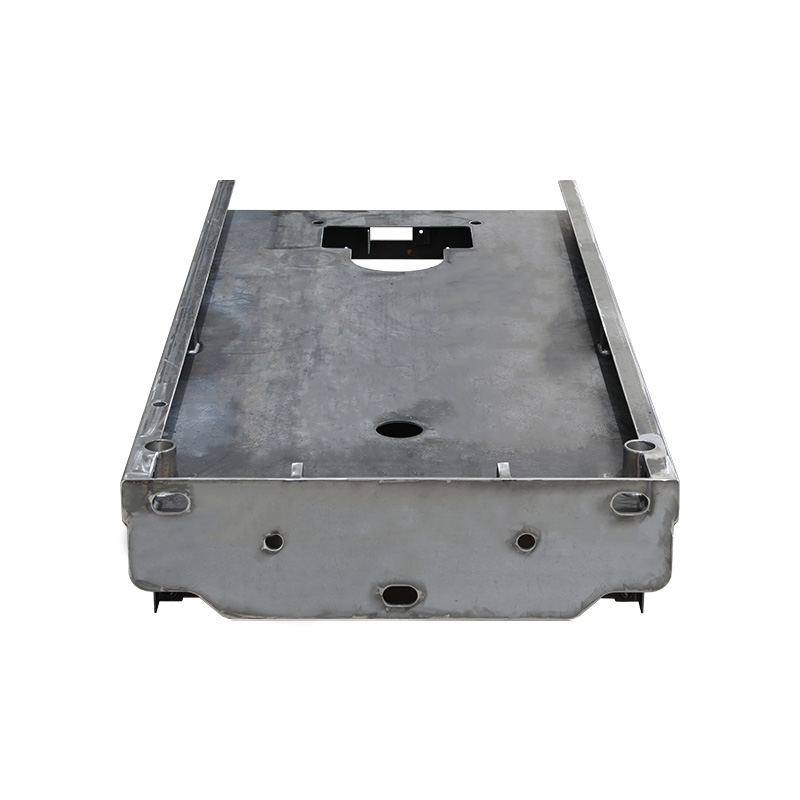

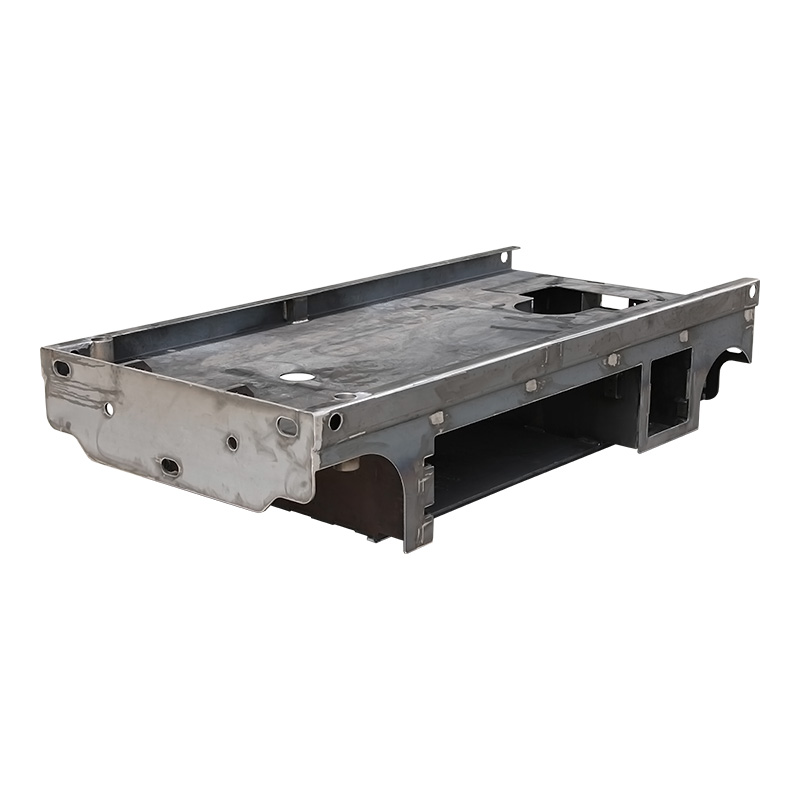

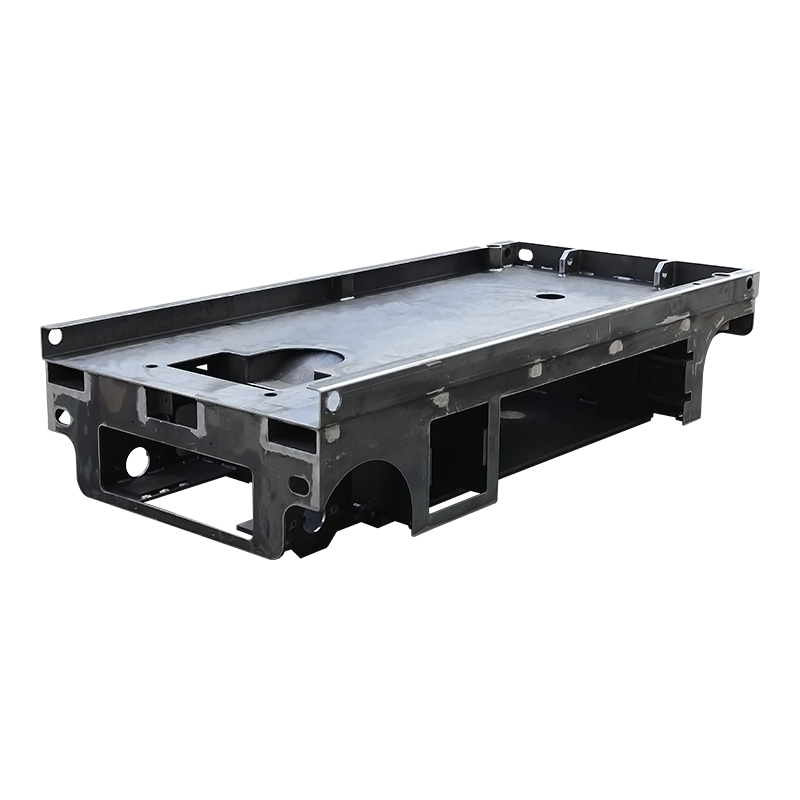

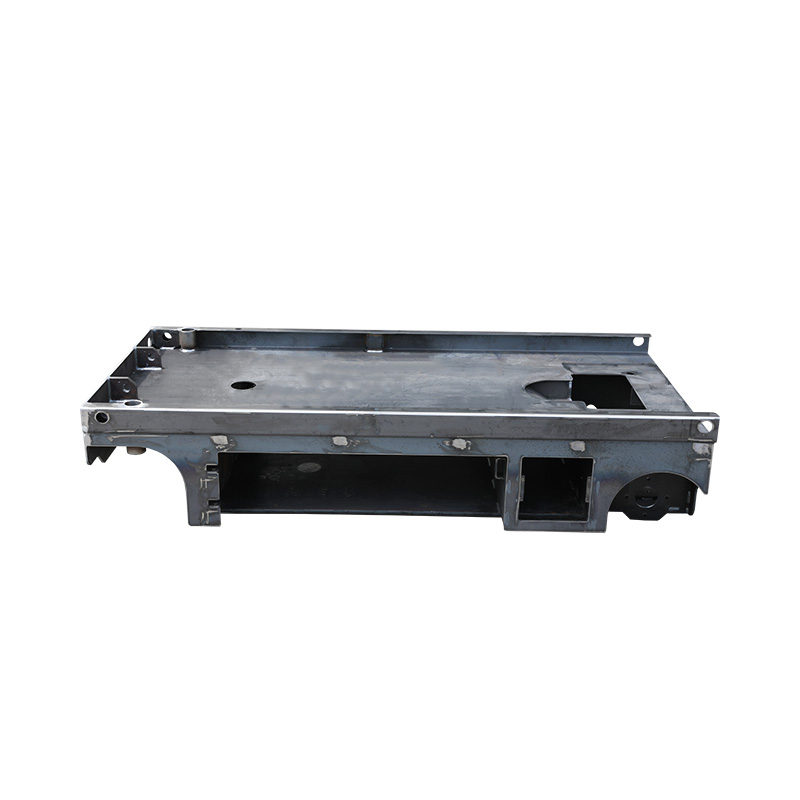

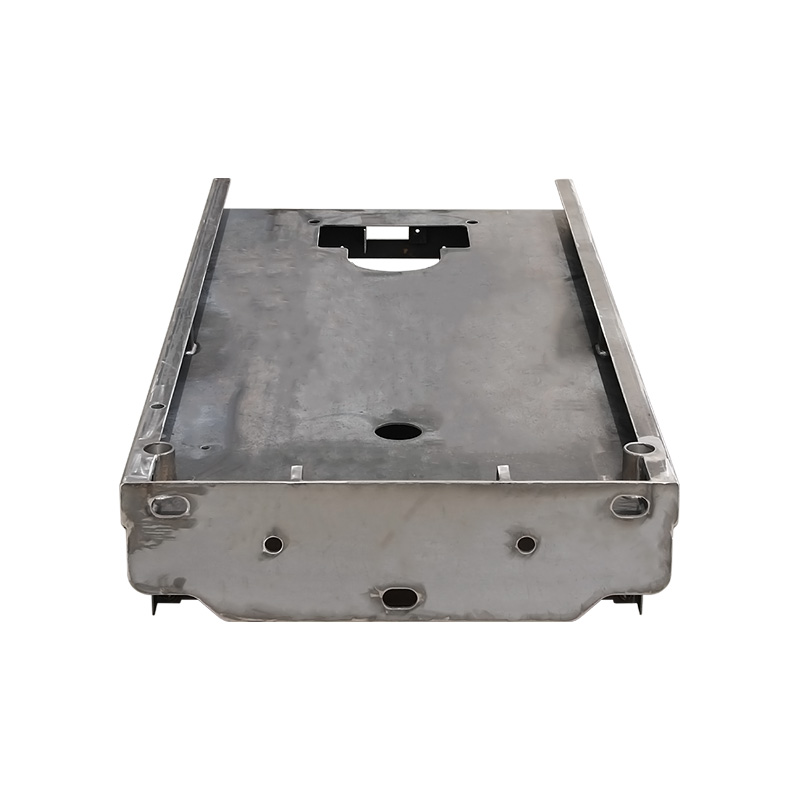

ladder truck frame, also known as an aerial ladder truck frame, is an integral component of a fire department’s apparatus, providing essential support and functionality for firefighting and rescue operations. This sophisticated piece of equipment is designed to be strong, reliable, and versatile, ensuring that firefighters can perform a wide range of tasks safely and efficiently.
The ladder truck frame is constructed using high-strength steel or aluminum alloys, chosen for their durability and weight-saving properties. The frame is engineered to withstand the substantial stresses of travel, operation, and the weight of water, equipment, and personnel. Modern manufacturing techniques, such as precision welding and laser cutting, ensure that each joint and section of the frame meets exacting standards for quality and strength.
The design of the ladder truck frame is optimized to support a heavy-duty telescoping aerial ladder and a spacious vehicle body. The frame often features multiple cross members and reinforcements to distribute weight evenly and prevent twisting or bending during operation. It is typically designed to accommodate a variety of body configurations, allowing customization of compartments for equipment storage, water tanks, pump systems, and hose beds.
At the core of the
ladder truck frame is its integration with the aerial device – the telescoping ladder. This ladder can extend to various lengths, often exceeding 100 feet, and is capable of supporting multiple firefighters along with their gear. The frame includes a stabilized turntable that allows the ladder to rotate up to 360 degrees, providing access to all sides of a structure. The design ensures that the ladder’s movements are smooth and secure, with safety interlocks and overload protection systems in place.
The ladder truck frame incorporates a sophisticated suspension system designed to ensure a stable ride, even when carrying heavy loads and traversing uneven terrain. This may include a combination of leaf spring and air ride components, as well as shock absorbers to minimize the impact on the frame and equipment. The frame is also designed for optimal maneuverability, with considerations for turning radius and clearance to navigate tight city streets and complex emergency scenes.
Safety is paramount in the design of a
ladder truck frame. It includes features such as reflective striping, non-slip surfaces, and ergonomic steps and handles for firefighter access. The frame and integrated aerial apparatus are subject to rigorous testing and must comply with national and international standards, such as those set by the National Fire Protection Association (NFPA) in the United States.
Manufacturers offer customization options to meet the specific needs of different fire departments. These might include varying ladder lengths, additional outriggers for stability, integrated lighting systems for visibility, and pre-piped waterways for firefighting operations. Compatibility with a range of accessories, such as baskets, rescue platforms, and monitors, adds to the ladder truck frame’s versatility.
The ladder truck frame is designed for ease of maintenance, with accessible components and corrosion-resistant finishes to ensure a long service life. Regular inspections and maintenance are crucial for operational readiness and the safety of firefighters and the public.
Ladder truck frame is a marvel of modern engineering, balancing strength, functionality, and safety to meet the demanding needs of firefighting and rescue operations. It serves as the backbone of the aerial ladder truck, providing a stable platform for saving lives and protecting property.
